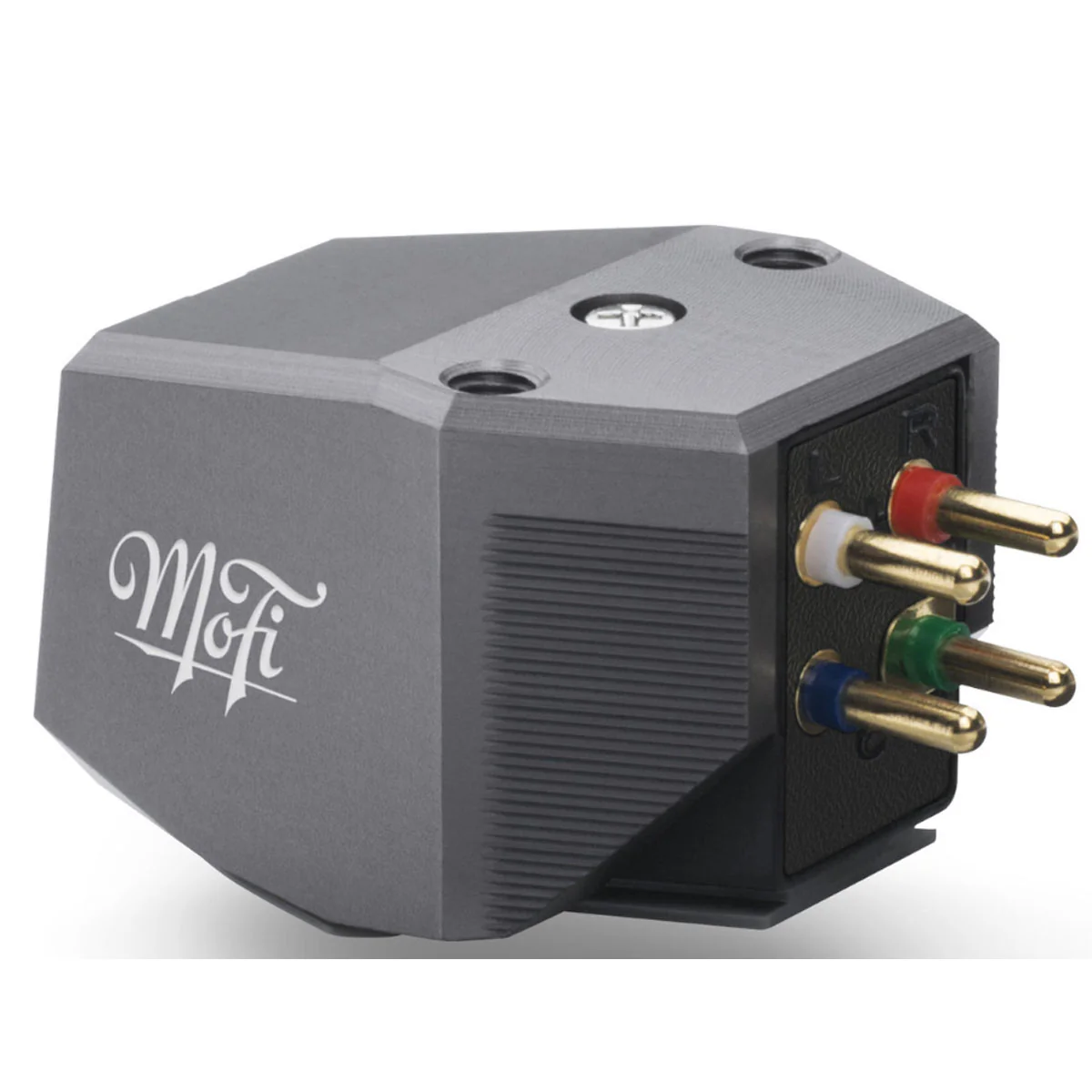

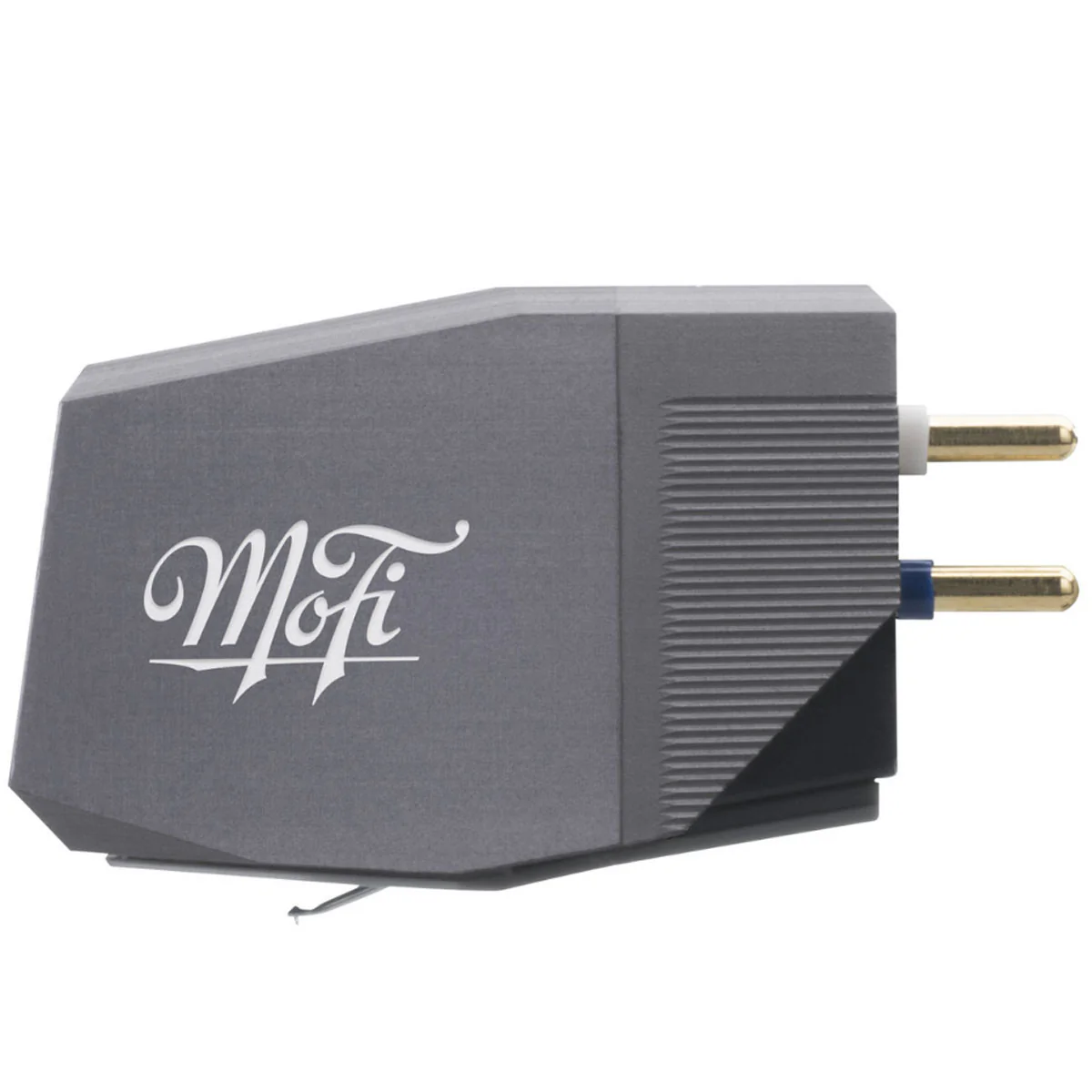

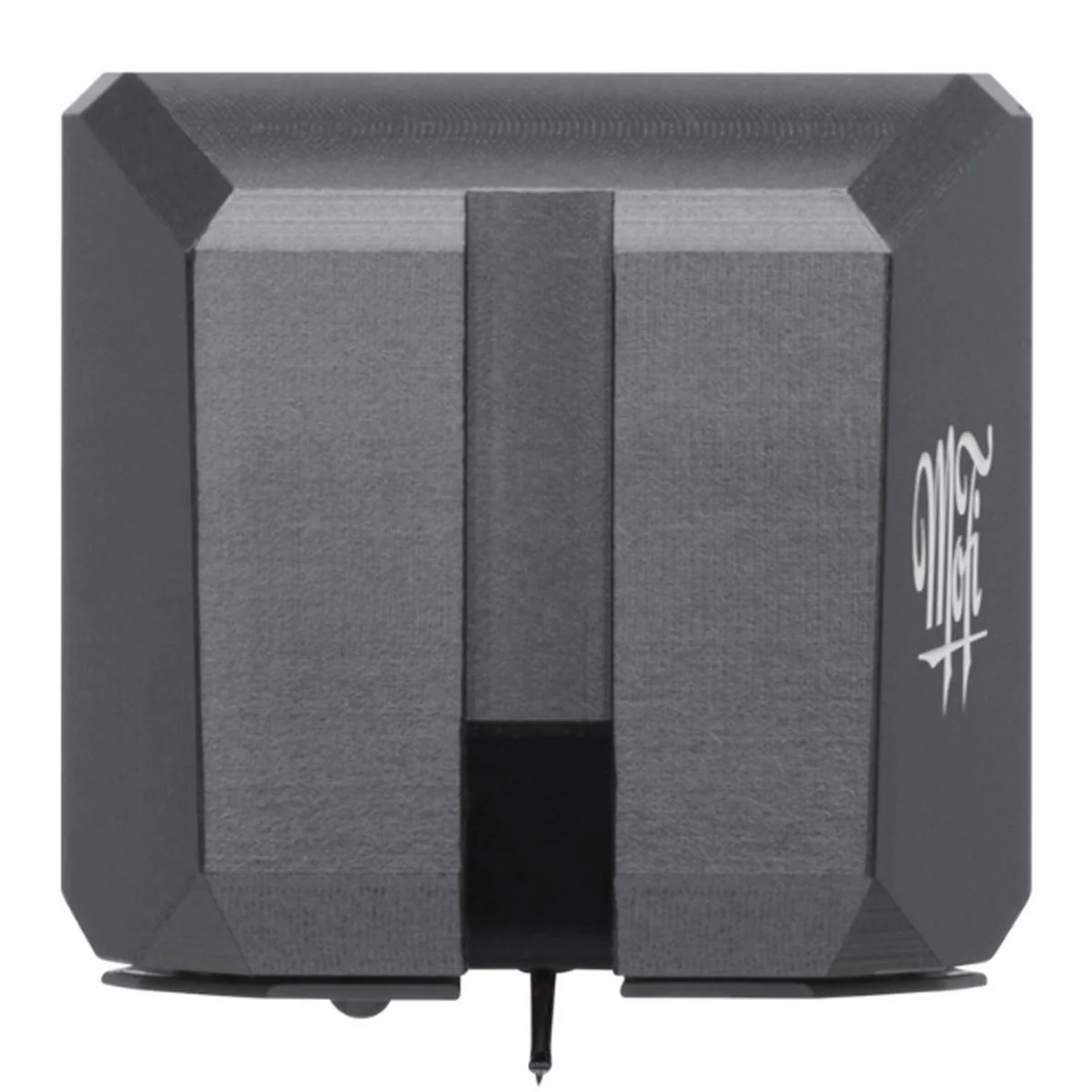

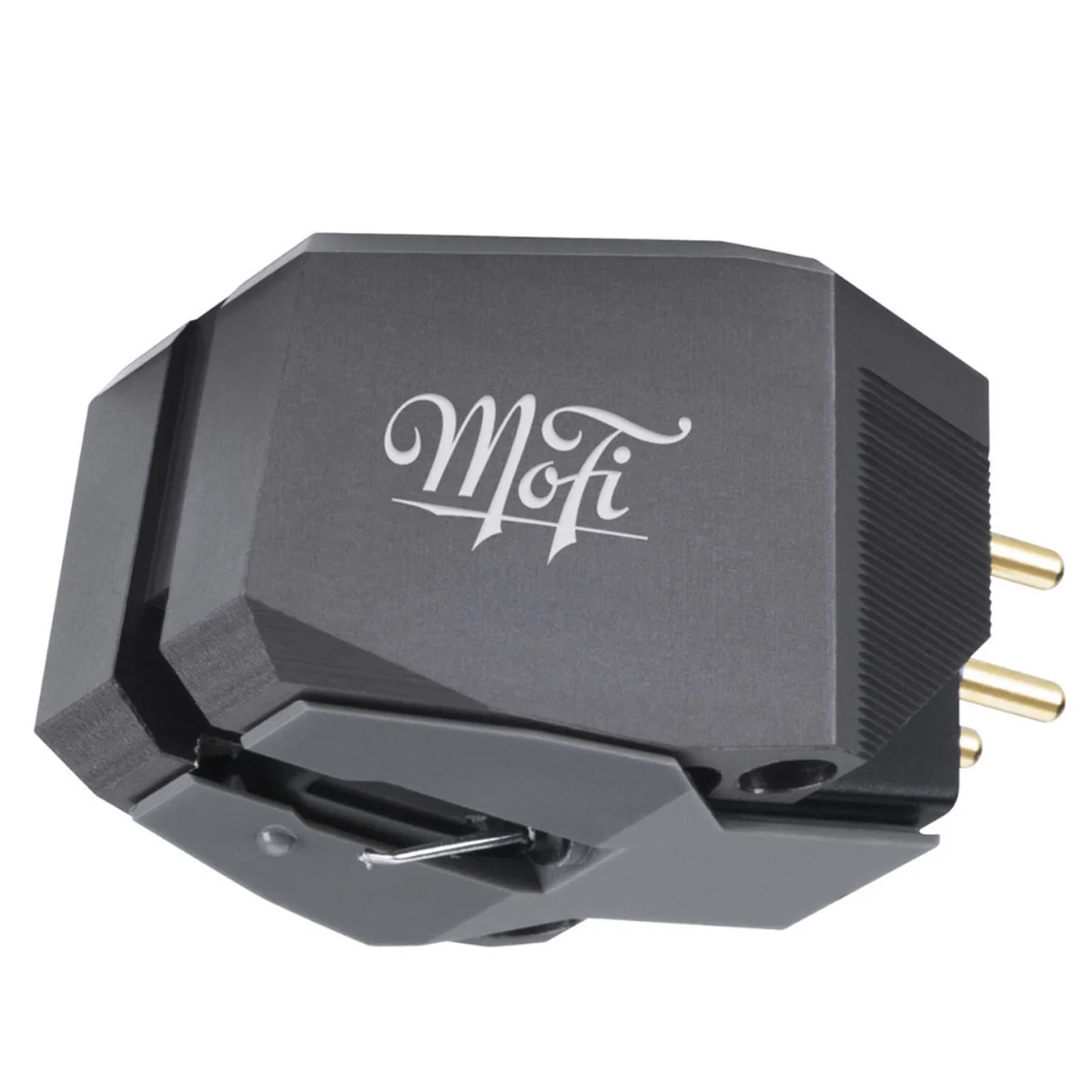

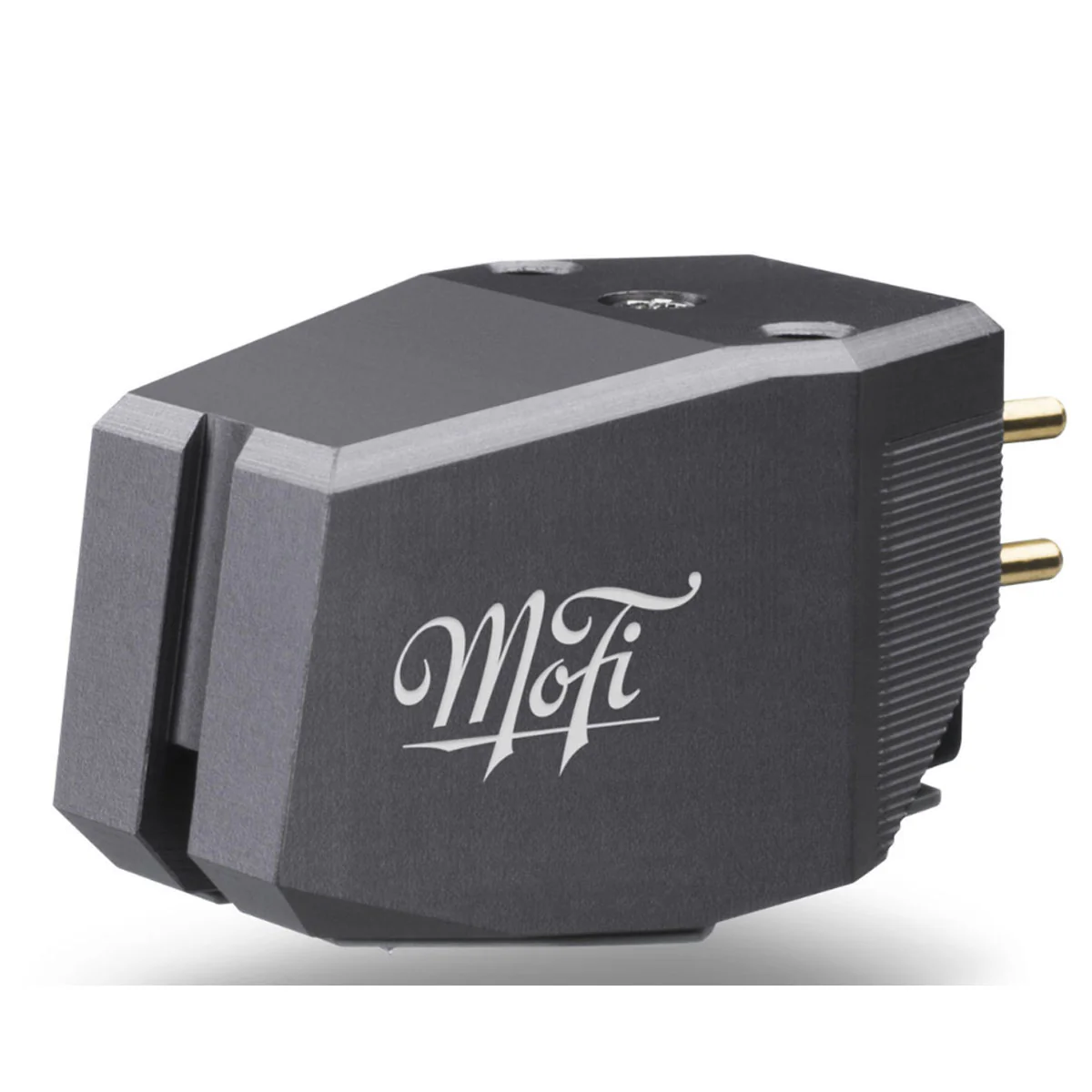

WELL-DAMPED BILLET ALUMINUM BODY
The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. MasterTracker has the lightest-weight magnets in the Tracker Series, delivering the kind of detailed, open performance normally attributed to high-end moving-coil cartridges.

MICRO-LINE DIAMOND STYLUS
By using a Micro-Line diamond stylus shaped like the cutting head of a record lathe, MasterTracker traces vinyl groove walls with microscopic precision.

SPECIFICATIONS

Type
Dual Magnet (MM) Stereo

Stylus
Micro-Line

Output Voltage
3mV

Frequency Response
20–25,000Hz

Weight
9.7g

Tracking Force
1.8–2.2g

Impedance
47kOhm

Capacitance
100pF

Compliance
Static compliance : 40 x 10e-6/dyne
Dynamic compliance : 10 x 10e-6/dyne

FEATURES
• V-Twin dual-magnet generator
• Micro-Line stylus with tapered cantilever
• Well-damped billet aluminum body
• Ohno continuous cast copper coils
• 3mV output

In The Box
MasterTracker Cartridge
with Stylus Guard
2. Stylus Cleaning Brush
3. Hex Driver
4. 2.5mm x 8mm Hex Screw (2)
5. 2.5mm x 10mm Hex Screw (2)
6. 2.5mm Metal Washer (2)
7. 2.5mm Nylon Washer (2)
