Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installers and customers. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio’s renowned design rigor, the crossover comprises high-quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

Optional square or premium grille can be used with this model.

Key Features

• Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted

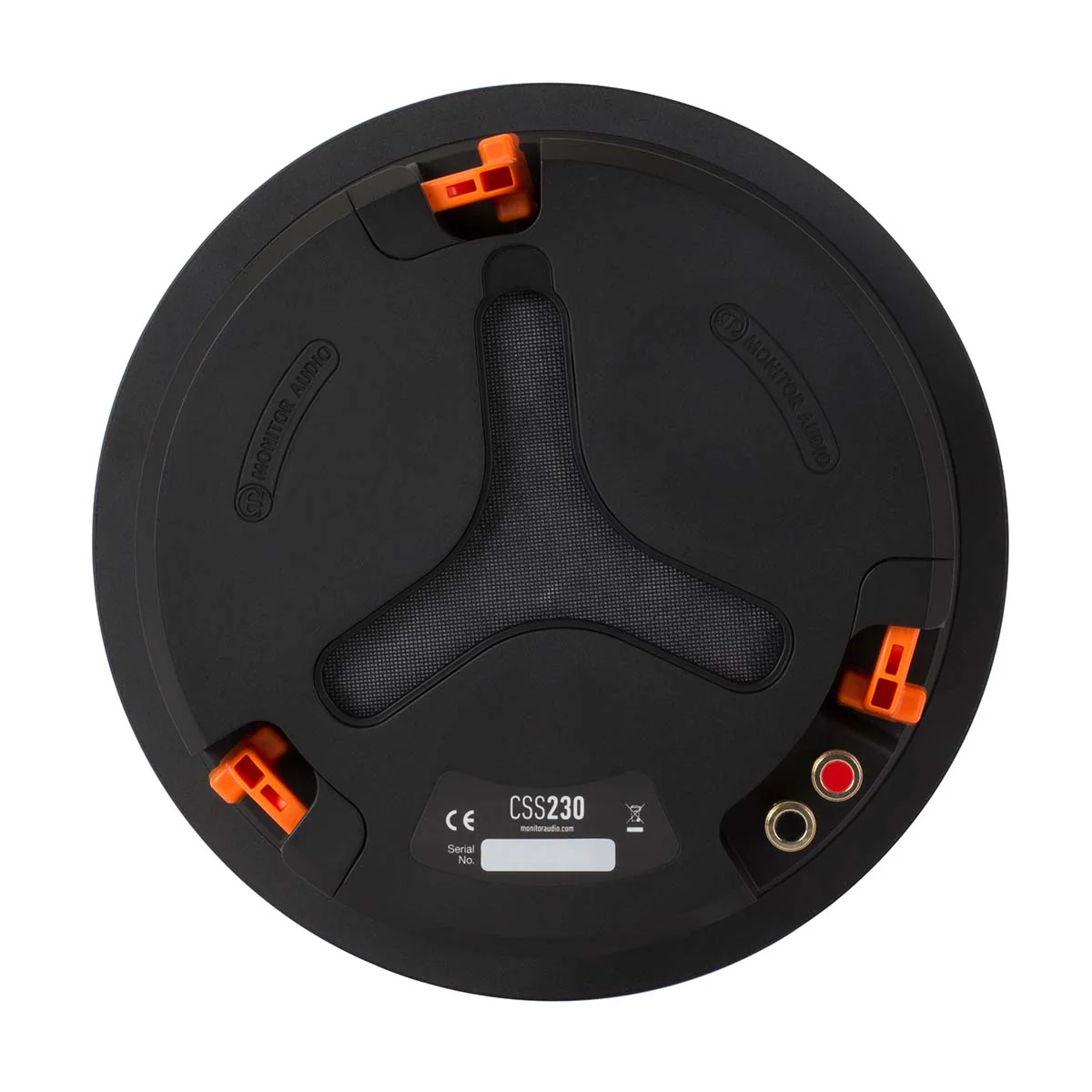

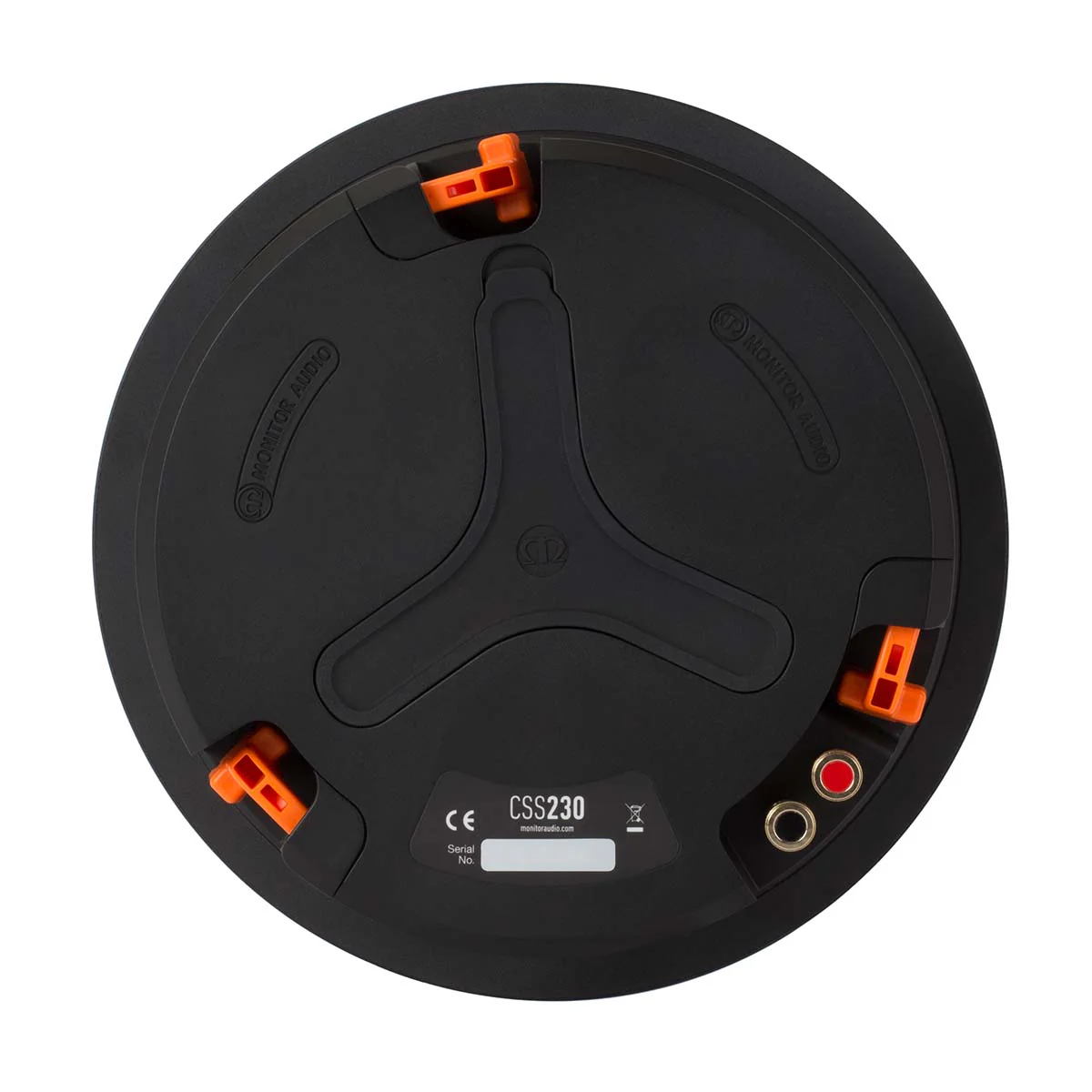

• Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high-performance options and sound isolation in one

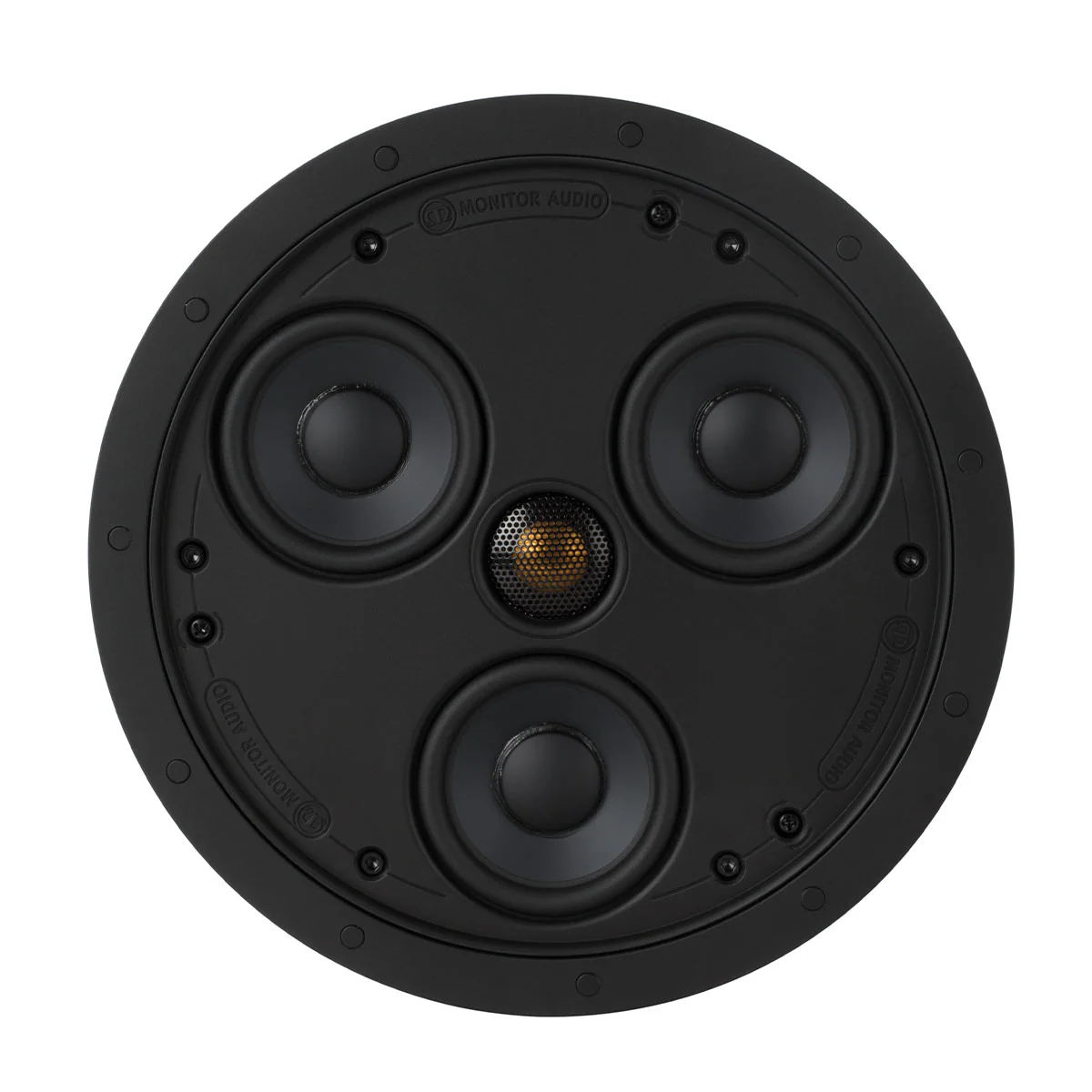

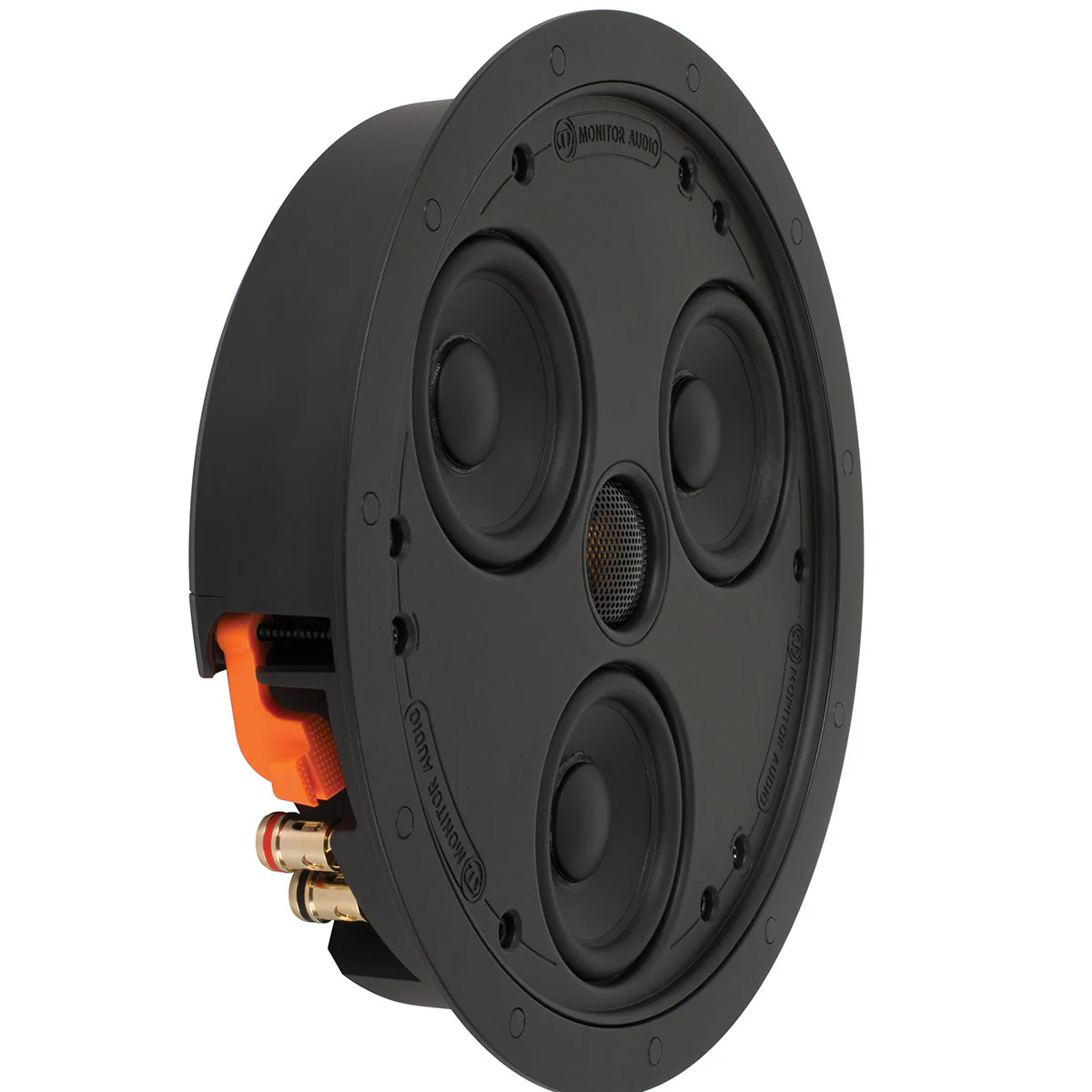

• Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high-quality crossover design offers Monitor Audio’s award-winning signature sound quality

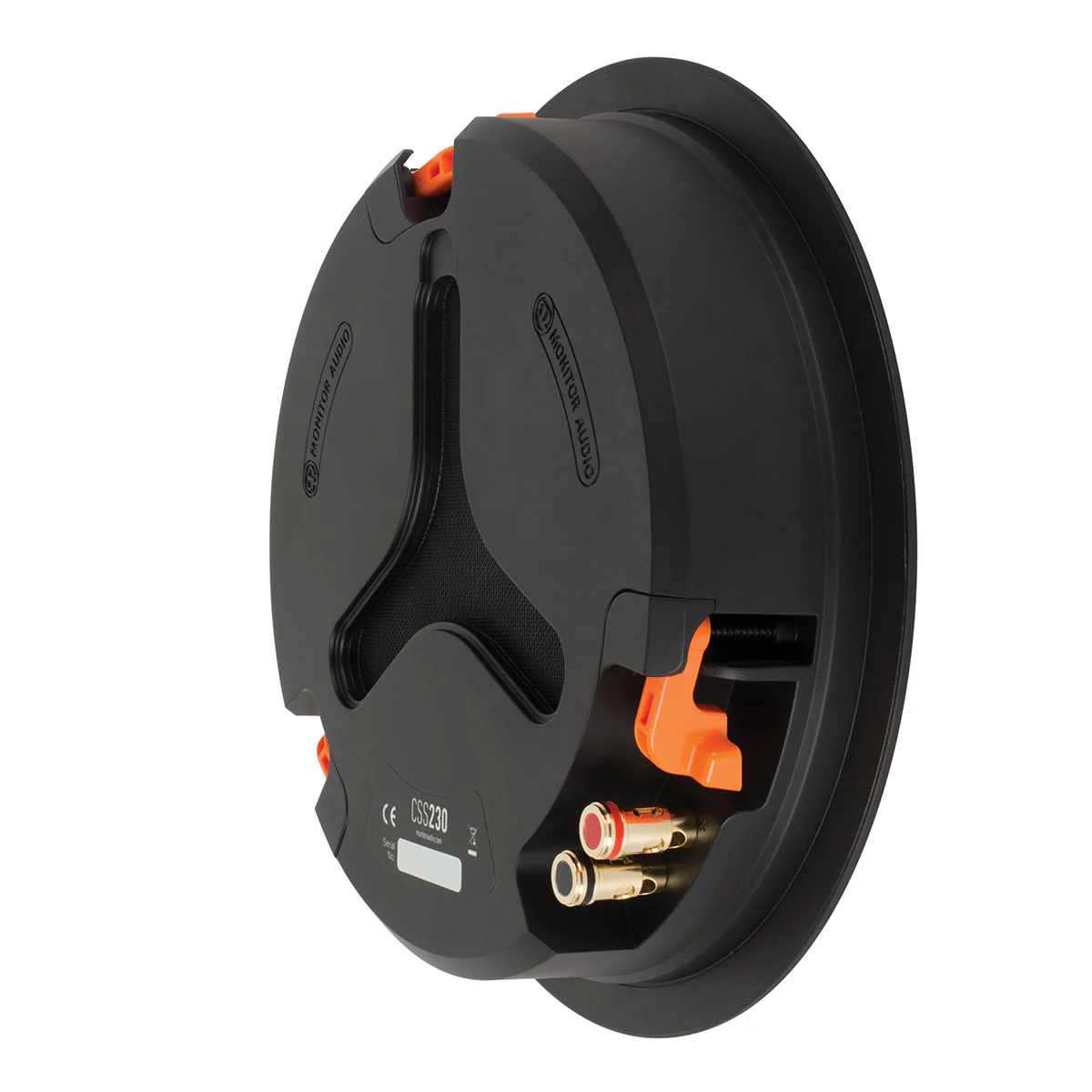

• Gold-plated sprung push terminals are reliable and easy to connect

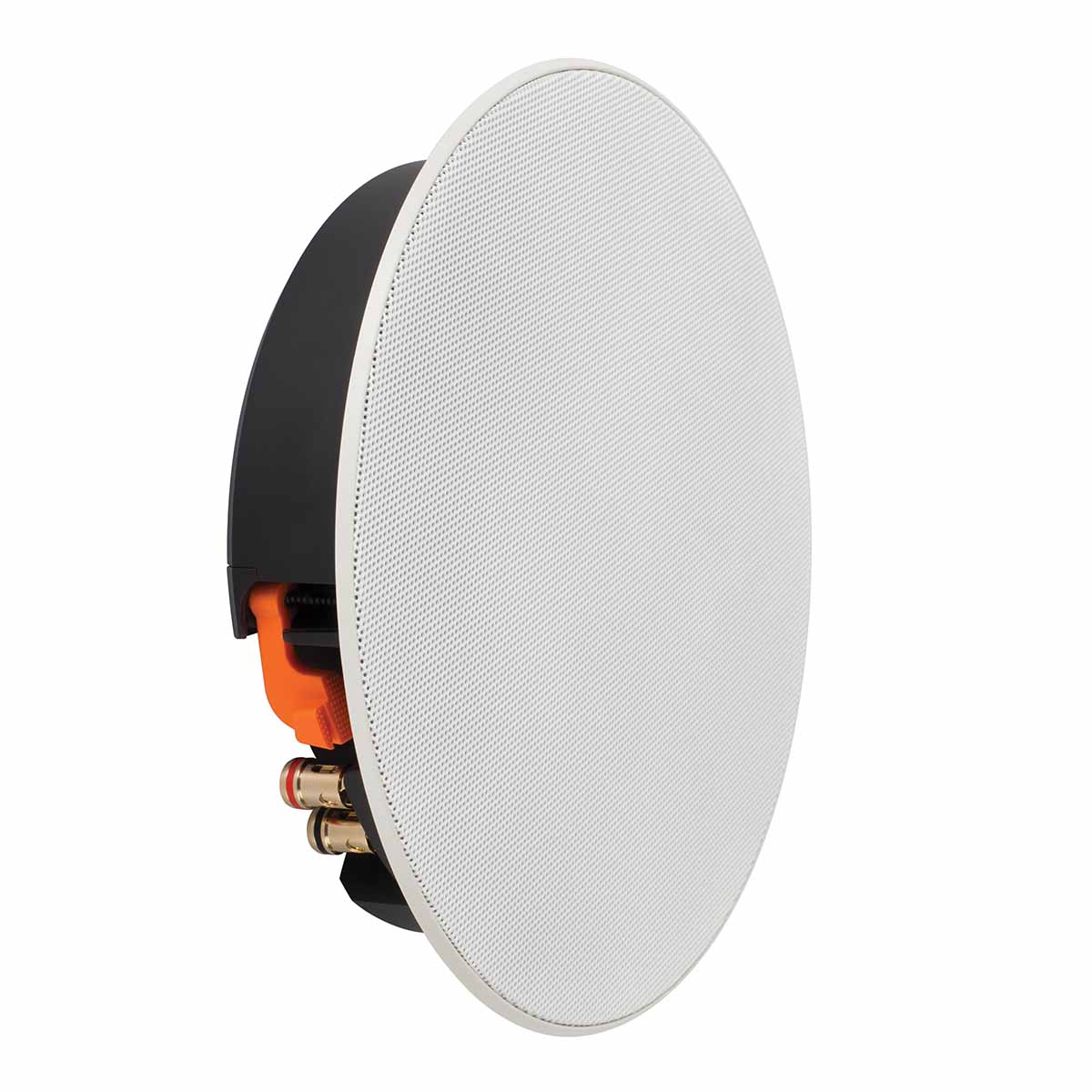

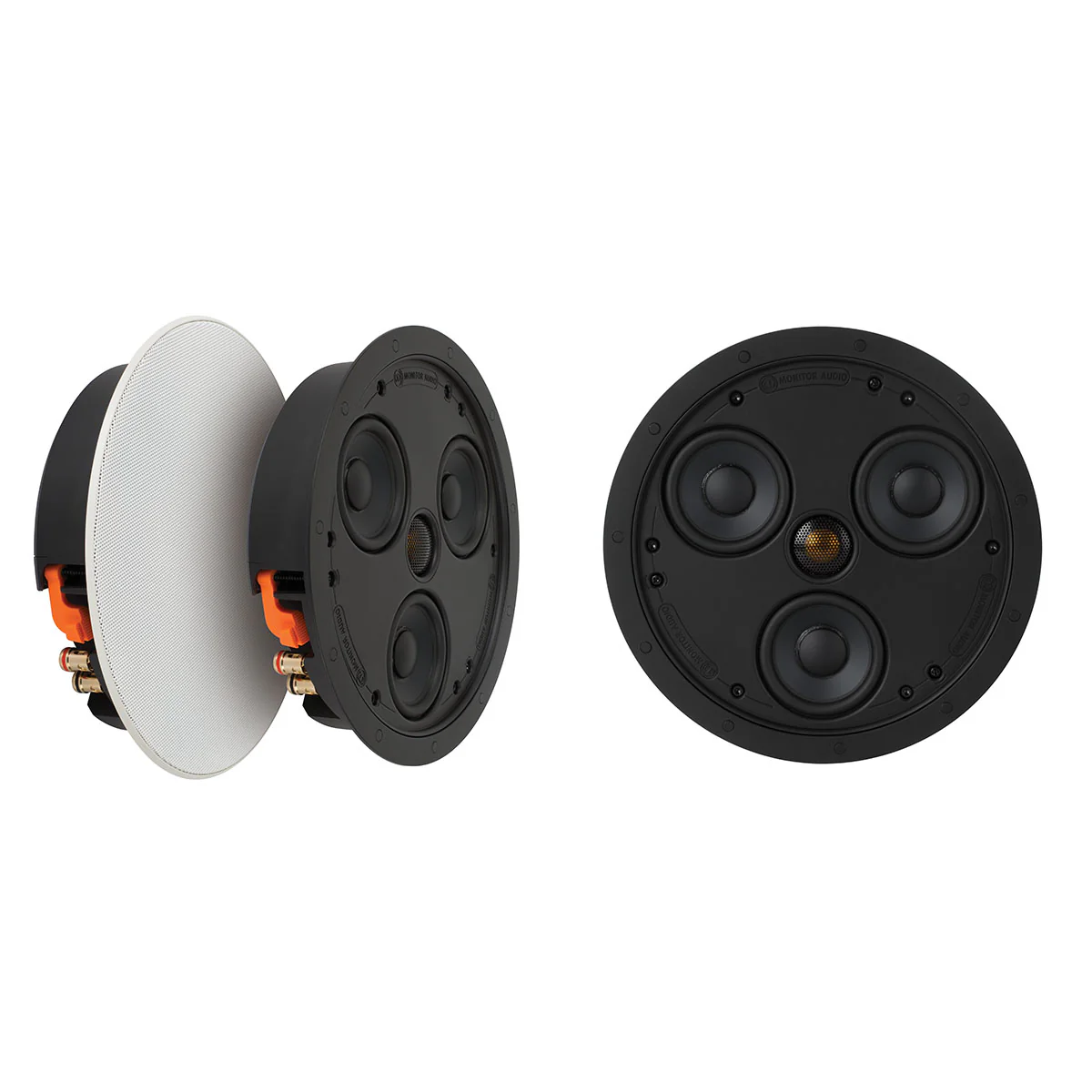

• Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable, and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
• Patented Tri-Grip dog leg fixings – Reliable, robust, and quick to install
• CB6 pre-construction bracket for easier system design and planning (sold separately)
