Information

• Fits Sony LED-LCD and OLED TVs from 55"-77" with a VESA wall-mount hole pattern of 300x300mm
• Compatible Sony OLED TVs: A9G series (55" to 77"), A8H series (55" to 65")
• Compatible Sony LED-LCD TVs: X950H series (55" to 75"), X900H series (55" to 75"), X800H series (55" to 75")
• Supports up to 80 lbs.
• Extends up to 9-1/16" from wall
• Swivel range: up to ±21° depending on TV model and screen size
• Integrated magnet lock ensures the TV is parallel to the wall
• Stud-mounting required
• Includes hardware for mounting bracket to wood studs, solid concrete, or concrete block walls
• 34"W x 14"H x 7/8"D
• Warranty: 1 year

What's in the box:

• Sony SU-WL855 Wall-Mount Bracket owner's manual

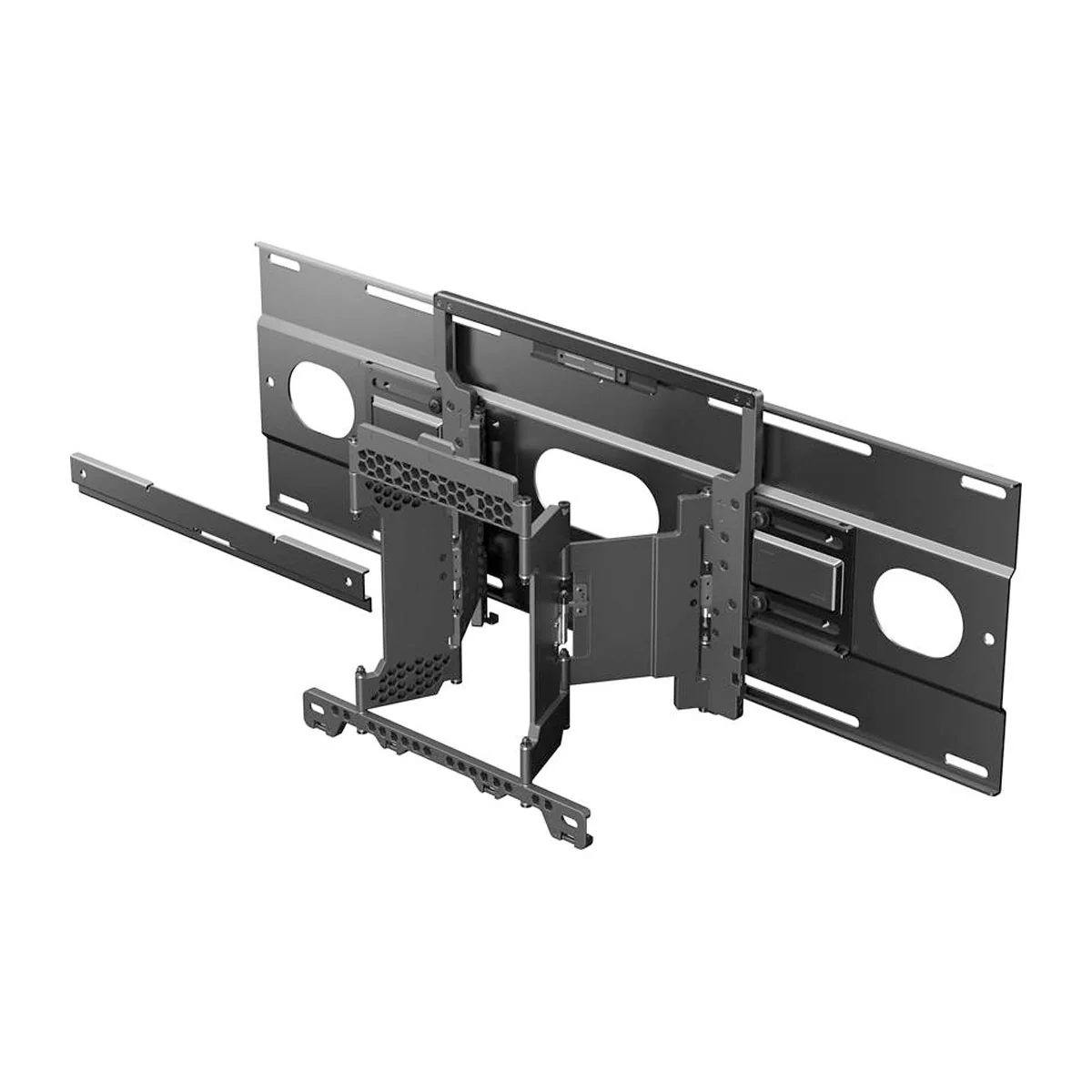

• TV bracket
• Wall bracket
• Support bracket
• Four M6x20mm bolts (flat and lock washers attached)
• Four 8mmx12mm bolts
• Six M8x60mm lag-bolts
• 6 Silver washers
• 4 Black washers
• 4 Concrete anchors
• Cable-tie
• 4 Self-adhesive rubber pads
